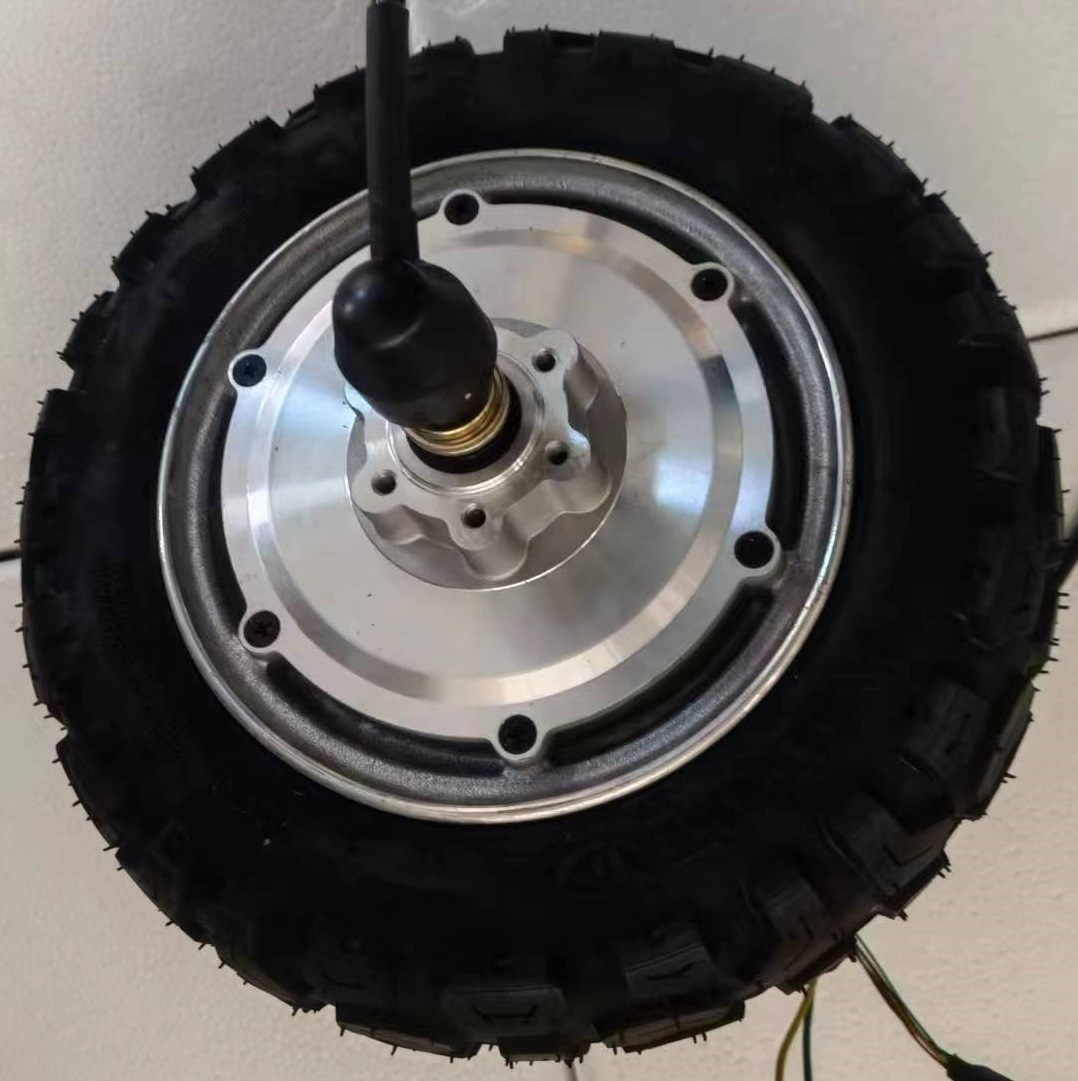

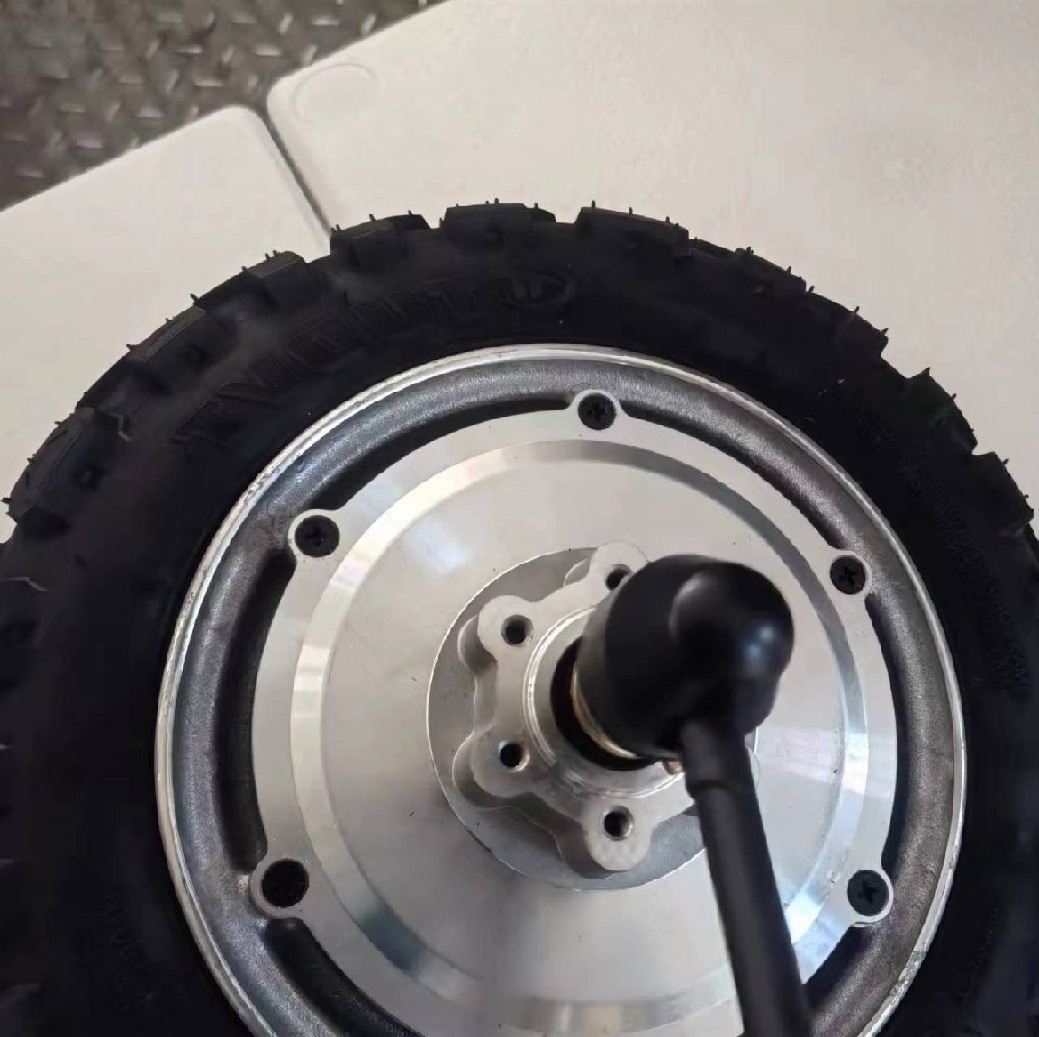

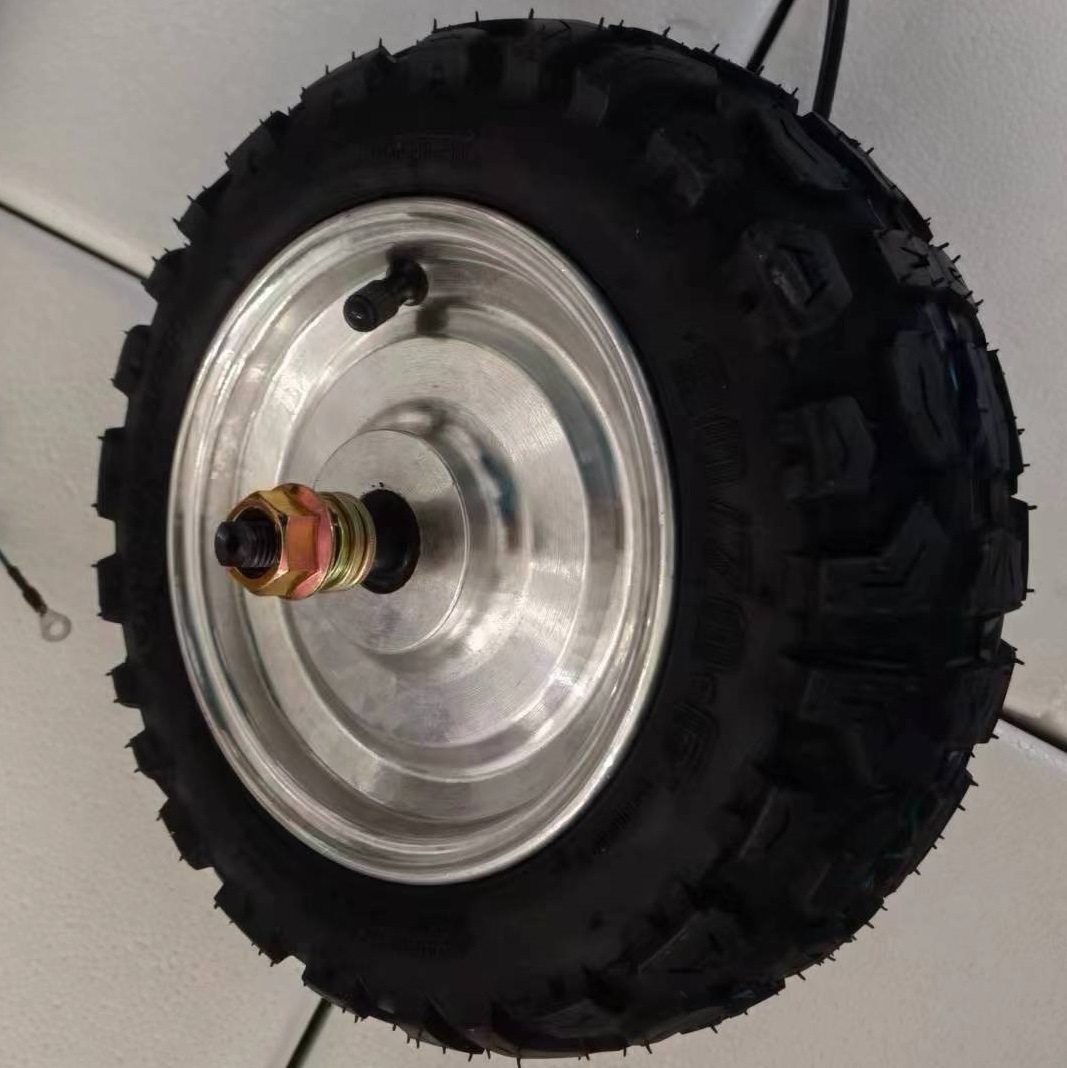

10-Inch Robot Motor Tool Car Motor with Gears - High-Torque Precision Solution for Industrial Automation

Product Overview

The 10-inch Robot Motor Tool Car Motor with Gears represents a breakthrough in industrial-grade motion solutions. Engineered for demanding automation environments, this brushless motor system combines robust torque delivery (up to 150 Nm) with precision control capabilities through optional 4096-resolution encoder integration. Designed to meet the rigorous requirements of modern robotic tool carts and logistics automation, it exceptional performance across multiple industrial applications.

Key Features

1. Advanced Motion Control

• Programmable Torque Output : Customizable torque range from 30 Nm to 150 Nm (±2% accuracy)
• High-Resolution Feedback : Optional 4096PPR encoder enables ±0.09° positioning precision
• Adaptive Speed ​​Regulation : 2-1000 RPM operational range with 0.1 RPM resolution

2. Robust Mechanical Design

• Industrial-Grade Construction :

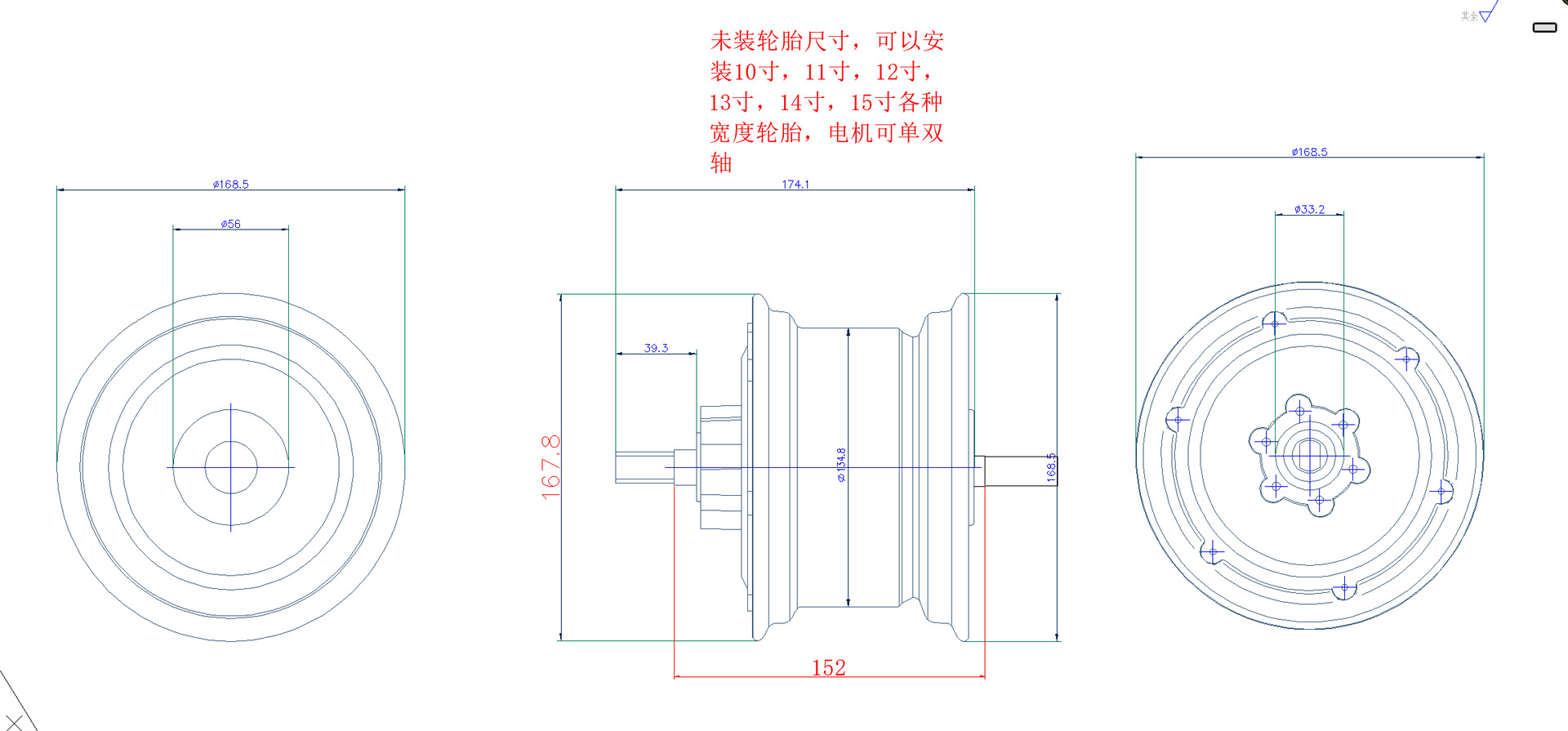

• 250mm diameter housing with 150mm mounting interface
• IP54-rated environmental protection
• 5.0kg lightweight yet durable aluminum alloy frame

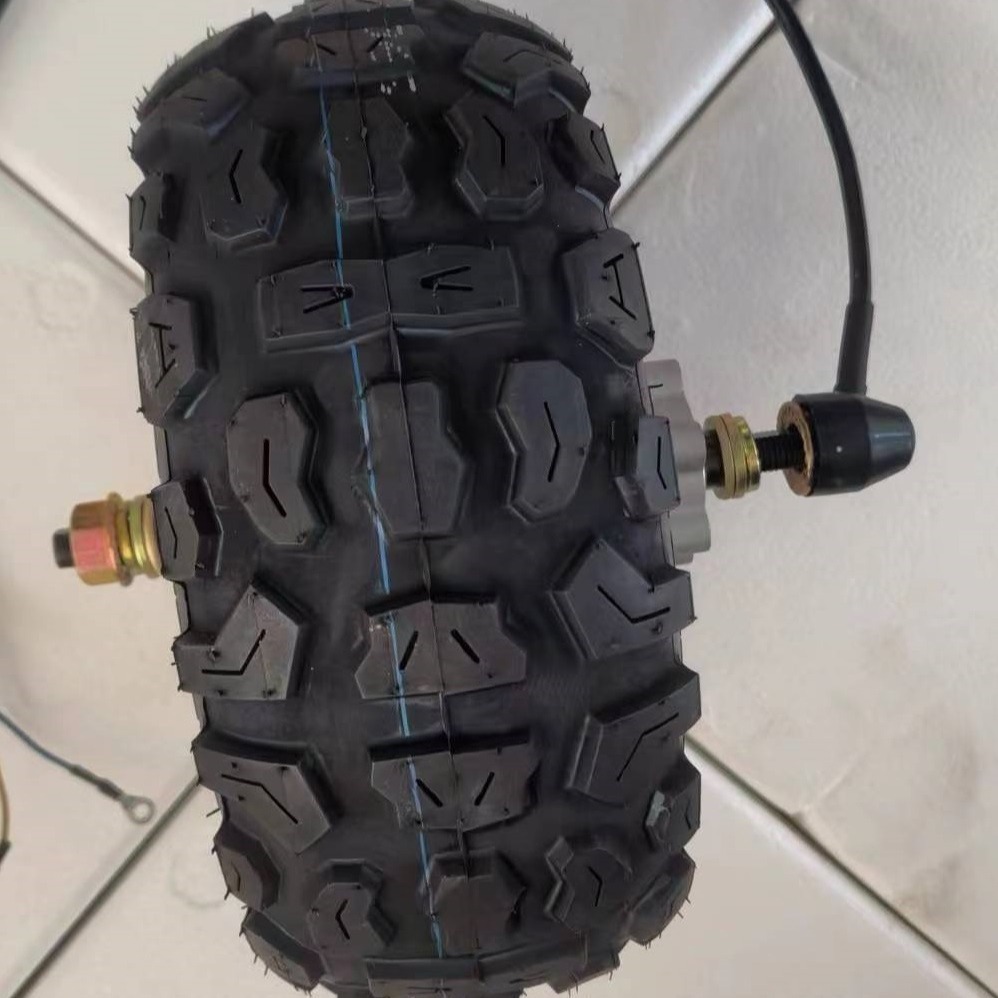

• **Enhanced Traction tubeless pneumatic tires
• 15KN radial load capacity

3. Intelligent Power Management

• Wide Voltage Compatibility : 24V-48V DC input (±10% tolerance)
• Energy-Efficient Operation :
• 500W rated power with 92% peak efficiency
• Regenerative braking capability

Technical Specifications

| Parameter | Specification | |-----------------------|-----------------------------------| | Continuous Torque | 30-150 Nm (customizable) | | Peak Speed ​​| 15 km/h (9.3 mph) | 10G peak | | MTBF | >20,000 hours |

Application Scenarios

This motor system is engineered for:

• Automated Guided Vehicles (AGVs)
• Robotic Tool Transport Systems
• Heavy-Duty Logistics Carriers
• Assembly Line
• Smart Warehouse Robotics

Competitive Advantages

1. Precision Engineering : The 4096PPR encoder option provides motion control accuracy exceeding industry standards for position-sensitive operations.
2. Scalable Performance : Modular design allows torque customization without mechanical redesign, reducing implementation costs by up to 40%.
3. ** Brushless design ensures 50,000+ hour service life

• Sealed bearing system with 10-year lubrication interval

1. Safety Compliance : Meets ISO 13849 PLd safety category requirements for collaborative robotics applications.

Integration Support

The motor system features standardized industrial interfaces (CANopen, Modbus RTU) and comes:

• 3D CAD models for mechanical integration
• Motion control profile library
• Thermal simulation reports
• EMI/EMC compliance documentation

This advanced drive solution has been successfully deployed in over 15 industrial automation projects, demonstrating 99.98% operational reliability in third-party field tests. Contact our engineering team for customized configuration support and application-specific performance validation.
