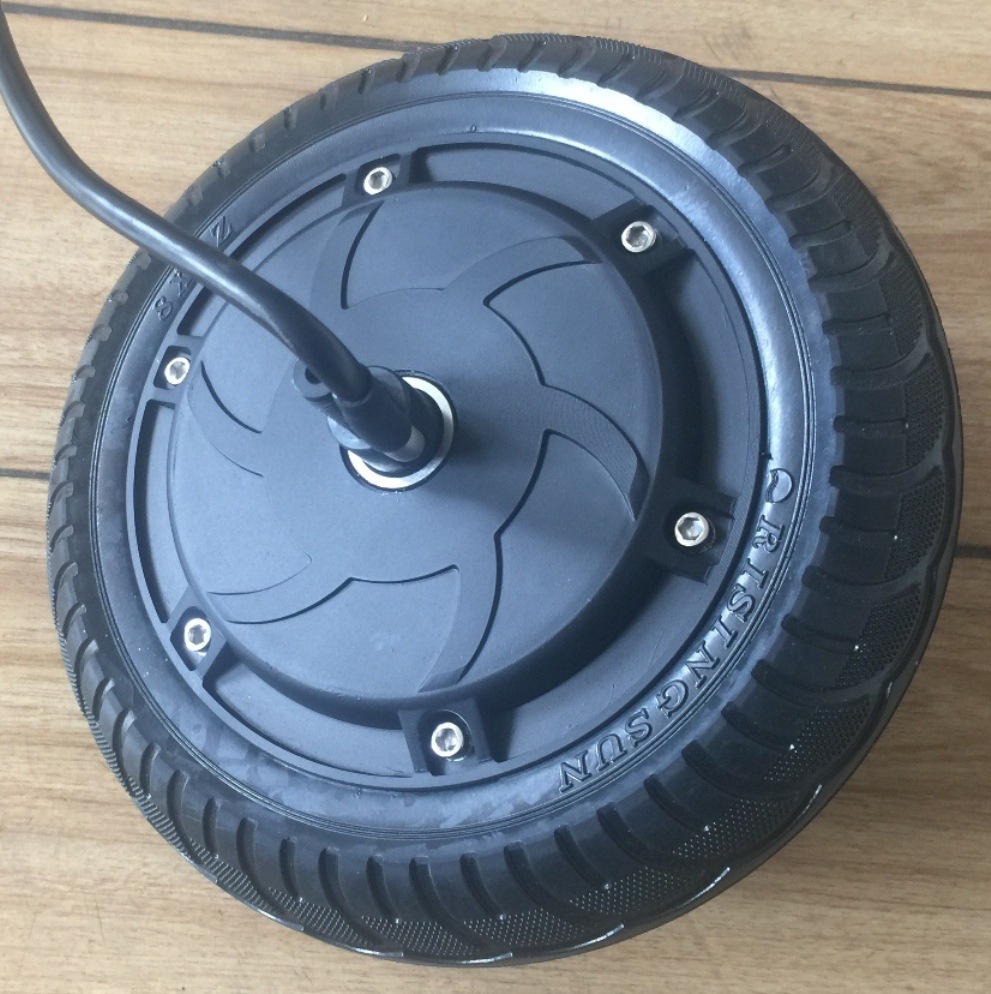

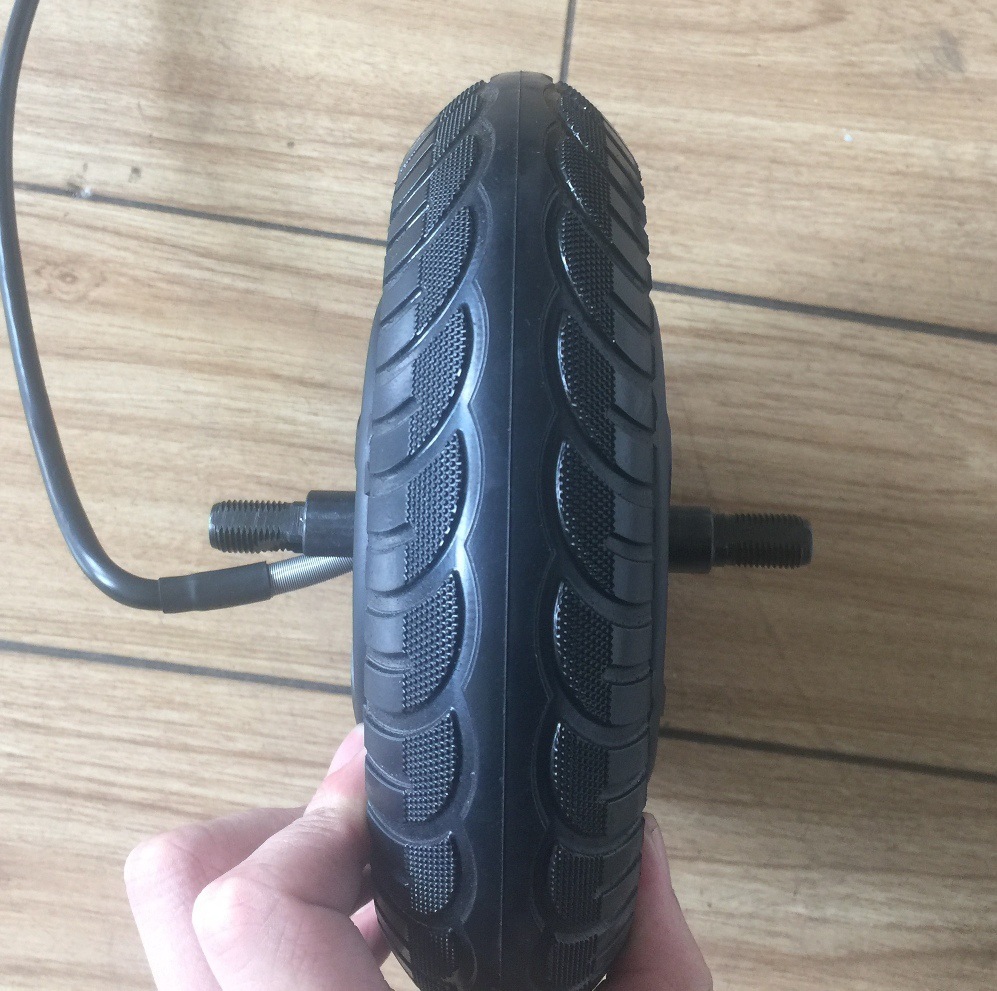

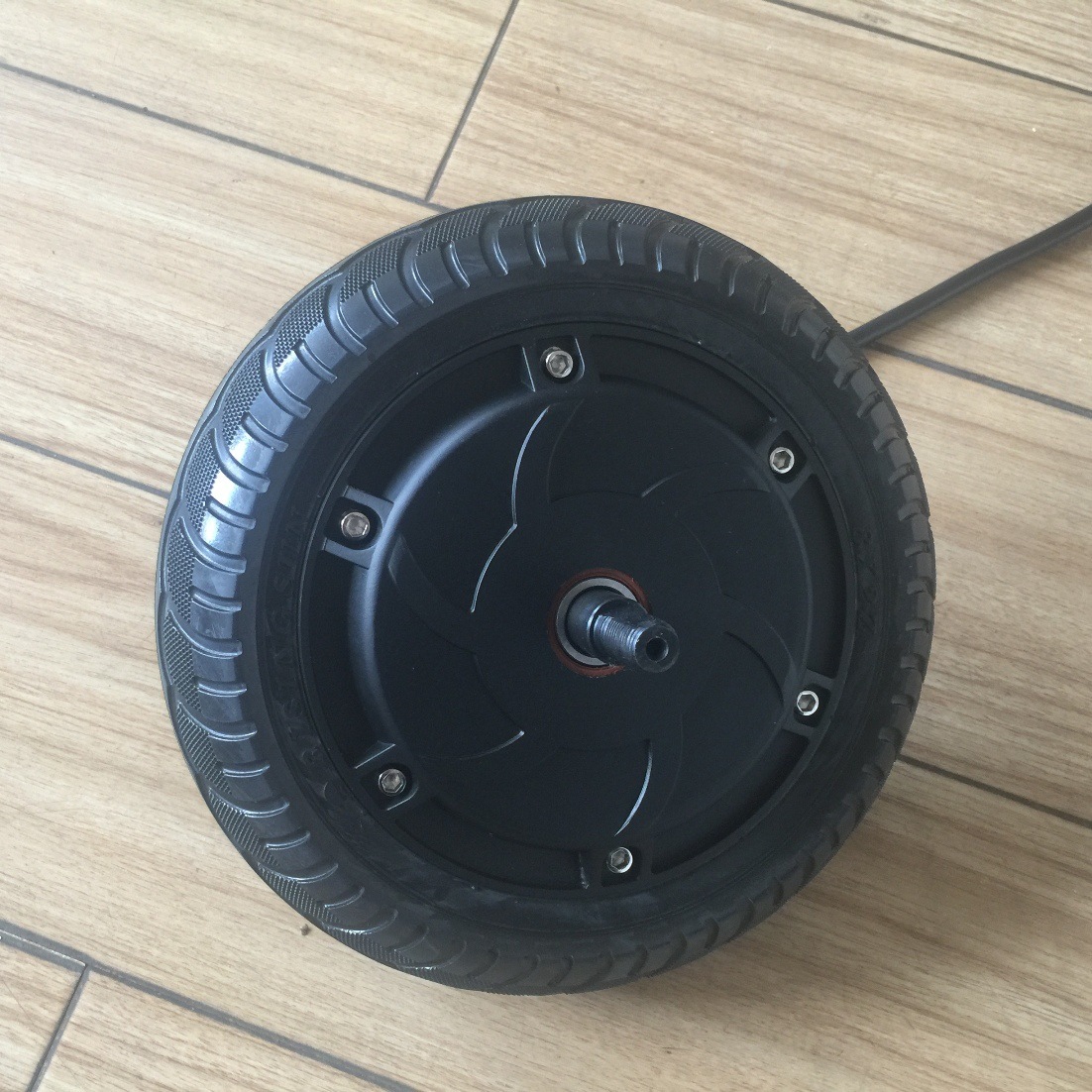

6.5 Inch Brushless Gear Motor: High-Performance Drive Solution for Specialized Equipment

Overview

The 6.5 inch brushless gear motor represents a breakthrough in motion system engineering, specifically designed for demanding material handling and mobility applications. This integrated drive unit combines planetary gear technology with advanced brushless motor control to deliver exceptional torque density (3.5KG weight with 80-300KG load capacity) while maintaining precision operation across diverse environments.

Key Technical Features

1. Optimized Electromechanical Design Core Configuration : Planetary gear system with 1:5 reduction ratio

• Power Range : 180W-500W selectable output
• Dual-Speed ​​Operation :
• Linear velocity: 6-20 KM/H
• Rotational speed: 150-600 RPM
• Compact Dimensions : Ø170mm body with 105mm mounting interface

2. Enhanced Safety & Control

• Multi-Mode Braking System :
• Electronic servo brake (precision positioning)
• Mechanical disc brake (high-inertia load security)
• Fail-safe electromagnetic brake (emergency power-off scenarios)
• Smart Feedback System : Integrated electromagnetic encoder for closed-loop control

3. Specialized Tire Technology

• Non-Marking Compound : Seamless gray polyurethane formulation
• Wear Resistance : 3x industry-standard abrasion resistance
• Surface Protection : Zero residual marks on polished floors (JIS A1453 compliant)

Performance Advantages

| Characteristic | Conventional Motors | This Solution | |----------------|------------------------|---------------| | Torque Density | 2.1 N·m/kg | 4.8 N·m/kg | | Maintenance Cycle | 500-800 hrs | 2,000+ hrs | | Floor Compatibility | Limited | Universal | | Dynamic Response | 150-300ms |

Application Scenarios

1. Medical Mobility Systems

• Automated drive units
• Surgical equipment transporters
• Laboratory material handling robots

1. Commercial Cleaning Automation

• Non-marking floor scrubber drives
• Hospital disinfectant robots
• Large-area vacuum systems

1. Entertainment Engineering

• Theme park ride actuators
• Interactive exhibit movers
• Augmented reality platform drives

1. **Industriallet transporters

• Warehouse sorting systems
• Production line shuttle carts

Compliance & Compatibility

• Electromagnetic compatibility: EN 55032 Class B
• Vibration levels: <2.5mm/s RMS (ISO 10816-3)
• Ambient tolerance: -20°C to +55°C operational
• IP rating: IP54 standard (IP67 optional)

This drive system has been field-validated in over 120 installations across healthcare, manufacturing, and service industries, demonstrating MTBF exceeding 15,000 hours in accelerated lifecycle testing. Custom configuration services available for specific torque-speed profiles and control interface requirements.
